Phosphorescent Pigments

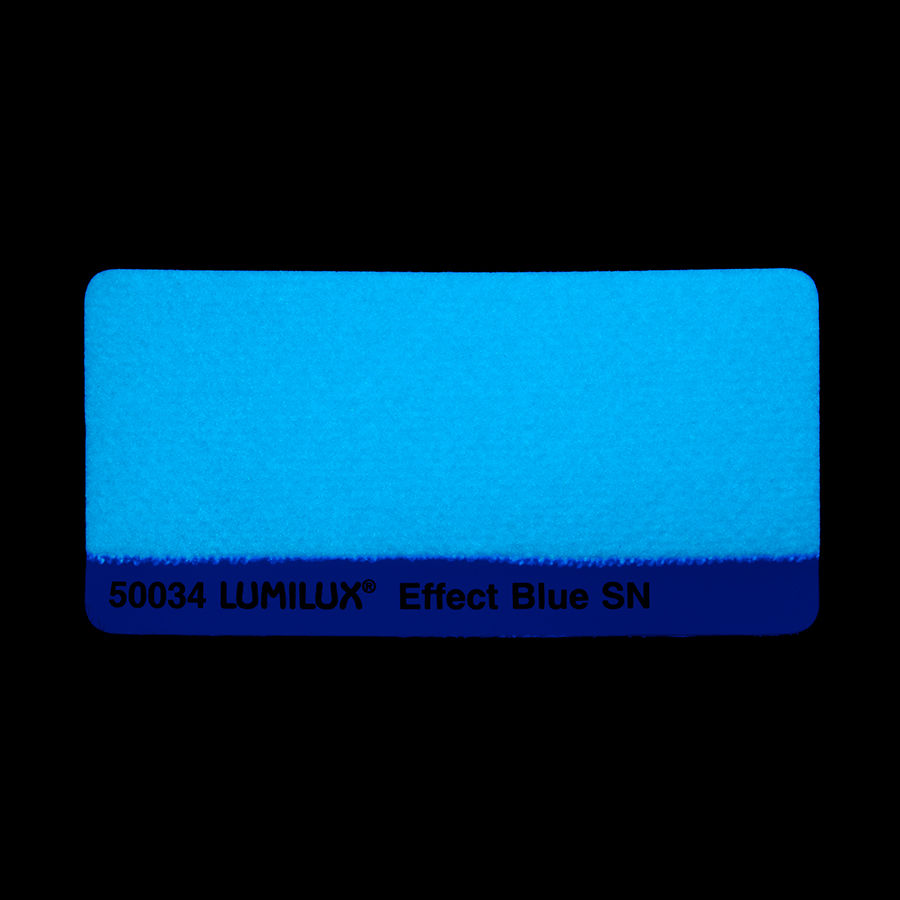

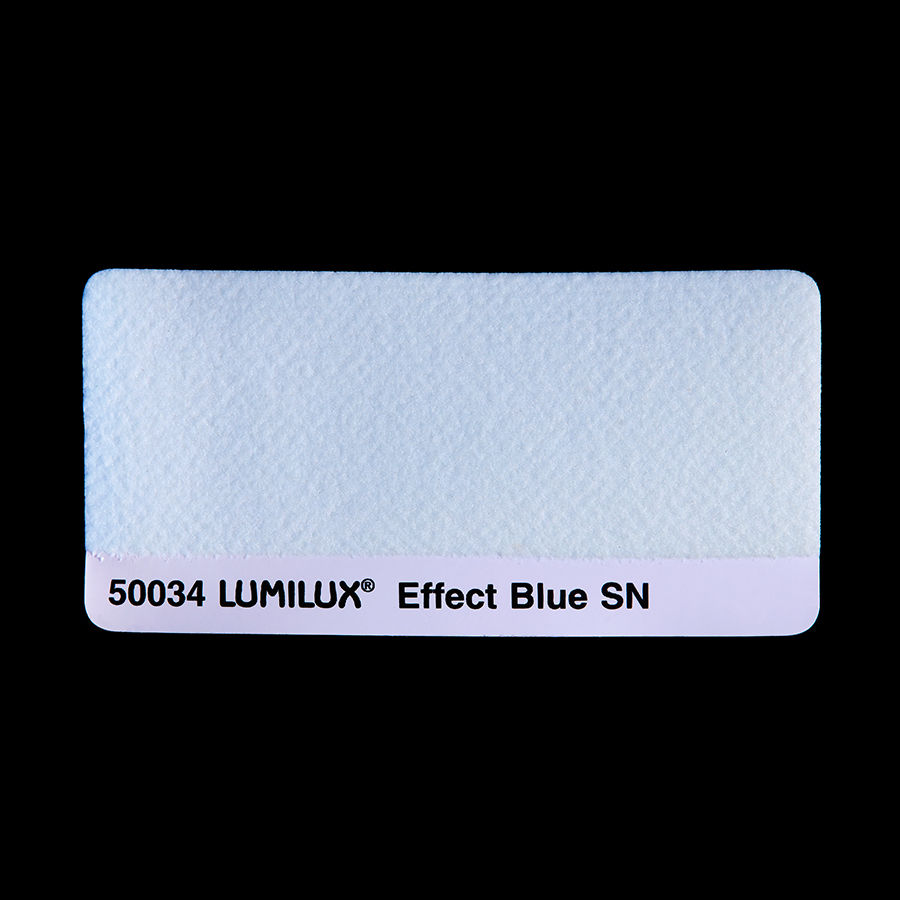

Lumilux� Effect Blue SN (50034)
Main use: Afterglow plastic sheets, silk screen printing paints, injection molding
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Lumilux SN-series phosphorescent pigments emit light long after the source has been removed. They are strontium aluminate-based, and meet UL and CE safety standards.
Honeywell Lumilux pigments have been a mainstay of the safety and security industry for more than four decades, consistently meeting the everchanging landscape of rigorous brightness standards required in safety, signage and authentication applications.We offer the industrys largest portfolio of phosphorescent and fluorescent pigments and taggants that can be used in a wide variety of applications, including:
Safety and signage
Automated sorting processes
Watch dials
Injection-molded toys and novelty items
Paints and coatings
Authentication applications
Other specialty applications
Honeywell Lumilux pigments have been a mainstay of the safety and security industry for more than four decades, consistently meeting the everchanging landscape of rigorous brightness standards required in safety, signage and authentication applications.We offer the industrys largest portfolio of phosphorescent and fluorescent pigments and taggants that can be used in a wide variety of applications, including:
Safety and signage
Automated sorting processes
Watch dials
Injection-molded toys and novelty items
Paints and coatings
Authentication applications
Other specialty applications
Specifications
Others
- Application
- Ink
- Paint
- Plastic
- CAS Number
- Not determined
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Maximum Particle Size
- 60, PSD50
- Particle Texture/Size
- Very coarse (D50 >50 µm)
- Product Type
- Luminescent/Phosphorescent Pigments Millimeter-PRD
- Typical Uses
- Ceramics
- Enamel
- Solvent-based paints and inks
- Thermoplastics
- Thermosetting plastics
- Water-based paints
- Chemical Class
- No data available
- Brightness
- 150 after 5 minutes
- 6 after 60 minutes
- 80 after 10 minutes
- Chemical Composition
- Alkaline Earth Silicate
- Color
- Yellowish
- Luminance DIN 67510-1
- 14 mcd/m2 after 60 minutes
- 150 mcd/m2 after 5 minutes
- 80 mcd/m2 after 10 minutes
- Particle Size Distribution
- < 65 μm, PSD50
- Phosphorescence Color
- Blue
- Physical Form
- Powder
- Screen Analysis
- <1% oversized particles on 125 μm testing screen
- Solubility
- Insoluble
- Chemical Stability
- No data available
Others
- Application
- Ink
- Paint
- Plastic
- CAS Number
- Not determined
- Compatibility
- Insoluble in water, alkalies, organic solvents and decomposed by acids
- Maximum Particle Size
- 60, PSD50
- Particle Texture/Size
- Very coarse (D50 >50 µm)
- Product Type
- Luminescent/Phosphorescent Pigments Millimeter-PRD
- Typical Uses
- Ceramics
- Enamel
- Solvent-based paints and inks
- Thermoplastics
- Thermosetting plastics
- Water-based paints
- Chemical Class
- No data available
- Brightness
- 150 after 5 minutes
- 6 after 60 minutes
- 80 after 10 minutes
- Chemical Composition
- Alkaline Earth Silicate
- Color
- Yellowish
- Luminance DIN 67510-1
- 14 mcd/m2 after 60 minutes
- 150 mcd/m2 after 5 minutes
- 80 mcd/m2 after 10 minutes
- Particle Size Distribution
- < 65 μm, PSD50
- Phosphorescence Color
- Blue
- Physical Form
- Powder
- Screen Analysis
- <1% oversized particles on 125 μm testing screen
- Solubility
- Insoluble
- Chemical Stability
- No data available
- Application : Ink|Paint|Plastic
- Typical Uses : Ceramics|Enamel|Solvent-based paints and inks|Thermoplastics|Thermosetting plastics|Water-based paints
- Product Type : Luminescent/Phosphorescent Pigments Millimeter-PRD
- Particle Texture/Size : Very coarse (D50 >50 µm)
- Maximum Particle Size : 60, PSD50
- Compatibility : Insoluble in water, alkalies, organic solvents and decomposed by acids
- CAS Number : Not determined
- Solubility : Insoluble
- Screen Analysis : <1% oversized particles on 125 μm testing screen
- Physical Form : Powder
- Phosphorescence Color : Blue
- Particle Size Distribution : < 65 μm, PSD50
- Luminance DIN 67510-1 : 14 mcd/m2 after 60 minutes|150 mcd/m2 after 5 minutes|80 mcd/m2 after 10 minutes
- Color : Yellowish
- Chemical Composition : Alkaline Earth Silicate
- Brightness : 150 after 5 minutes|6 after 60 minutes|80 after 10 minutes
- Chemical Stability : No data available
- Chemical Class : No data available
