Foam Blowing Agents

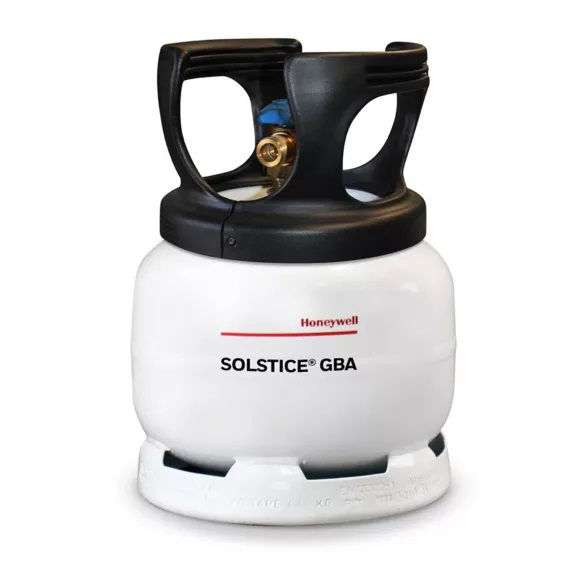

Solstice� Gas Blowing Agent
Ideal for extruded polystyrene (XPS) and one- and two-component PUR foams, Solstice GBA replaces HFC-134a and other blowing agents. It has a GWP < 1.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Solstice Gas Blowing Agent (GBA) is an ultra-low global warming potential (GWP) replacement for HFC-134a, HFC-152a, HCFC-142b, HCFC-22 and other blowing agents in foam applications. Examples include extruded polystyrene plank, polyisocyanurate (polyisoboards), pressurized polyurethane foams (one-component and two-component), and froth foams. Based on hydrofluoro-olefin (HFO) technology, Solstice GBA offers:
- Foam properties similar to HFC-134a and HFC-152a
- Nonflammable (ASTM E-681, EU A11)
- Ultra-low GWP < 1
- Non-ozone-depleting
- Listed under the U.S. EPAs Significant New Alternatives Policy (SNAP) program to replace ozone-depleting substances
- Not listed in Annex 1 of F-Gas regulation
- VOC-exempt (U.S. EPA)
- Listed on the TSCA inventory/registered under REACH
- U.S.-based manufacturing
Specifications
Others
- Application
- Extruded Polystyene (XPS)
- Extruded Polystyene (XPS)
- Replaces
- HFC-134a
- Latent Heat of Vaporization
- 44.35 cal/g at B.P.
- 84.43 Btu/lb at B.P.
- Molecular Weight
- 114
- Saturated Liquid Density
- 1.15 g/cm3 at 30 °C
- 71.57 lb/ft3 at 86 °F
- Specific Heat of Saturated Liquid
- 0.34 Btu/lb at 86 ⁰F, at Cp
- 335 cal/kg at 30 ⁰C, at Cp
- Specific Heat of Saturated Vapor
- 0.24 Btu/lb at 86 ⁰F, at Cp
- 239 cal/kg at 30 ⁰C, at Cp
- Flammable Range
- Non-flammable
- Global Warming Potential
- < 1
- Ozone Depletion Potential
- 0
- REACH Product Stewardship
- Registered
- Boiling Point/Range
- -19 °C at 1 Atm
- -2.2 °F at 1 Atm
Others
- Application
- Extruded Polystyene (XPS)
- Extruded Polystyene (XPS)
- Replaces
- HFC-134a
- Latent Heat of Vaporization
- 44.35 cal/g at B.P.
- 84.43 Btu/lb at B.P.
- Molecular Weight
- 114
- Saturated Liquid Density
- 1.15 g/cm3 at 30 °C
- 71.57 lb/ft3 at 86 °F
- Specific Heat of Saturated Liquid
- 0.34 Btu/lb at 86 ⁰F, at Cp
- 335 cal/kg at 30 ⁰C, at Cp
- Specific Heat of Saturated Vapor
- 0.24 Btu/lb at 86 ⁰F, at Cp
- 239 cal/kg at 30 ⁰C, at Cp
- Flammable Range
- Non-flammable
- Global Warming Potential
- < 1
- Ozone Depletion Potential
- 0
- REACH Product Stewardship
- Registered
- Boiling Point/Range
- -19 °C at 1 Atm
- -2.2 °F at 1 Atm
- Application : Extruded Polystyene (XPS)|Extruded Polystyene (XPS)
- Replaces : HFC-134a
- Specific Heat of Saturated Vapor : 0.24 Btu/lb at 86 ⁰F, at Cp|239 cal/kg at 30 ⁰C, at Cp
- Specific Heat of Saturated Liquid : 0.34 Btu/lb at 86 ⁰F, at Cp|335 cal/kg at 30 ⁰C, at Cp
- Saturated Liquid Density : 1.15 g/cm3 at 30 °C|71.57 lb/ft3 at 86 °F
- Molecular Weight : 114
- Latent Heat of Vaporization : 44.35 cal/g at B.P.|84.43 Btu/lb at B.P.
- Boiling Point/Range : -19 °C at 1 Atm|-2.2 °F at 1 Atm
- Ozone Depletion Potential : 0
- Global Warming Potential : < 1
- Flammable Range : Non-flammable
- REACH Product Stewardship : Registered
